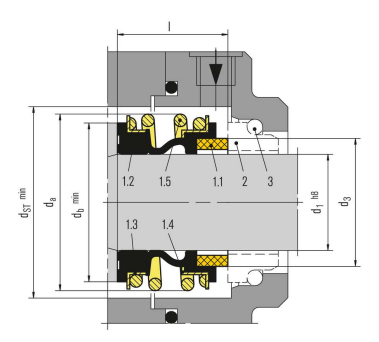

WMG1 Elastomer Bellow Mechanical Seal Replaced Burgmann Mg1

Replacement for below mechanical seals

AESSEAL B02, BURGMANN MG1, FLOWSERVE 190

Features

• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Balanced
• Independent of direction of rotation
• No torsion on bellows

Advantages

• Shaft protection over entire seal length
• Protection of seal face during installation due to special bellows design
• Insensitive to shaft deflections due to large axial movement ability
• Universal application opportunities
• Important material certifications available
• High flexibility due to wide offer on materials
• Suitable for low-end sterile applications
• Special design for hot water pumps (RMG12) available
• Dimension adaptions and additional seats available

Operating Range

Shaft diameter:
d1 = 10 … 100 mm (0.39" ... 3.94")
Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature: t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm (±0,08")

Combination Material
