Explore our premium selection of heavy-duty oil pump seals designed for robust cartridge integration and reliable fluid containment.
In modern industrial operations, fluid containment is paramount to efficiency, safety, and environmental compliance. An oil pump seal for industrial cartridge sealing represents the pinnacle of mechanical sealing technology. Unlike traditional component seals, which require meticulous manual assembly and alignment on the pump shaft, cartridge seals are pre-assembled units. They integrate the sealing faces, gland plate, sleeve, and springs into a single package, calibrated to the exact compression required. This plug-and-play architecture drastically reduces installation errors, which account for over 60% of premature mechanical seal failures.
The commercial landscape for industrial cartridge seals is evolving rapidly. With escalating regulatory pressures concerning volatile organic compounds (VOCs) and hazardous fluid emissions, industries such as oil and gas, petrochemical processing, and marine engineering are transitioning away from gland packing and component-based seals. The demand is shifting heavily toward balanced single and double cartridge seals. These configurations are designed to manage extreme operating conditions, including high pressures, high shaft velocities, and media containing abrasive particulates.
Industry Trend Insight: The global industrial seal market is increasingly adopting smart cartridge sealing systems equipped with IoT monitoring sensors. These sensors track real-time changes in face temperature, barrier fluid pressure, and vibration, allowing operators to transition from reactive maintenance to predictive asset management.
To withstand the harsh environments of industrial oil pumps, cartridge seals rely on advanced material science. Seal faces are typically paired using combinations of Silicon Carbide (SiC), Tungsten Carbide (TC), and specialized Carbon-Graphite. Silicon Carbide offers exceptional hardness, thermal conductivity, and chemical resistance, making it the material of choice for high-pressure oil applications. Tungsten Carbide is utilized when maximum resistance to mechanical shock and abrasion is required. Elastomers, including Viton (FKM), EPDM, and Perfluoroelastomers (FFKM), are engineered to maintain elasticity and prevent chemical degradation under extreme temperatures.
Ningbo Victor Seals Co., Ltd was founded in 1998, more than 20 years ago, and is located in the thriving industrial hub of Ningbo, Zhejiang province. Our state-of-the-art factory covers an area of 3800 square meters with a built construction area of 3000 square meters. Guided by an elite team of over 40 dedicated employees, we have established ourselves as a highly professional and pioneering mechanical seals manufacturer in China.
Our registered brand "victor" is recognized and trusted in more than 30 countries worldwide. We specialize in the research, development, and manufacturing of complete mechanical sealing systems, including cartridge seals, rubber bellow seals, metal bellow seals, and o-ring seals. Our products conform strictly to international standards such as DIN24960, EN12756, ISO3069, API610, API682, and GB6556-94, ensuring seamless interchangeability with global brands.
We produce a wide variety of seal components in-house, utilizing premium raw materials:
From replacement to custom engineering, we deliver comprehensive lifecycle support for your industrial pumps.
Direct replacement parts for major international brands, matching original specifications with optimized performance.
Complete overhaul, face lapping, elastomer replacement, and pressure testing for all categories of industrial seals.
In-house engineering team capable of designing customized cartridge seals for high-temperature, corrosive, or non-standard spaces.
Oil pumps operate across a broad spectrum of temperatures and fluid viscosities. Standard component seals often fail to maintain pressure under these fluctuating conditions. Cartridge sealing systems overcome this challenge by maintaining a balanced face pressure ratio. In the Petroleum and Petrochemical Refining sector, crude oil contains grit, sand, and heavy residues that can easily clog the springs of a component seal. Cartridge seals isolate the springs from the process fluid, ensuring consistent face load and preventing clogging.

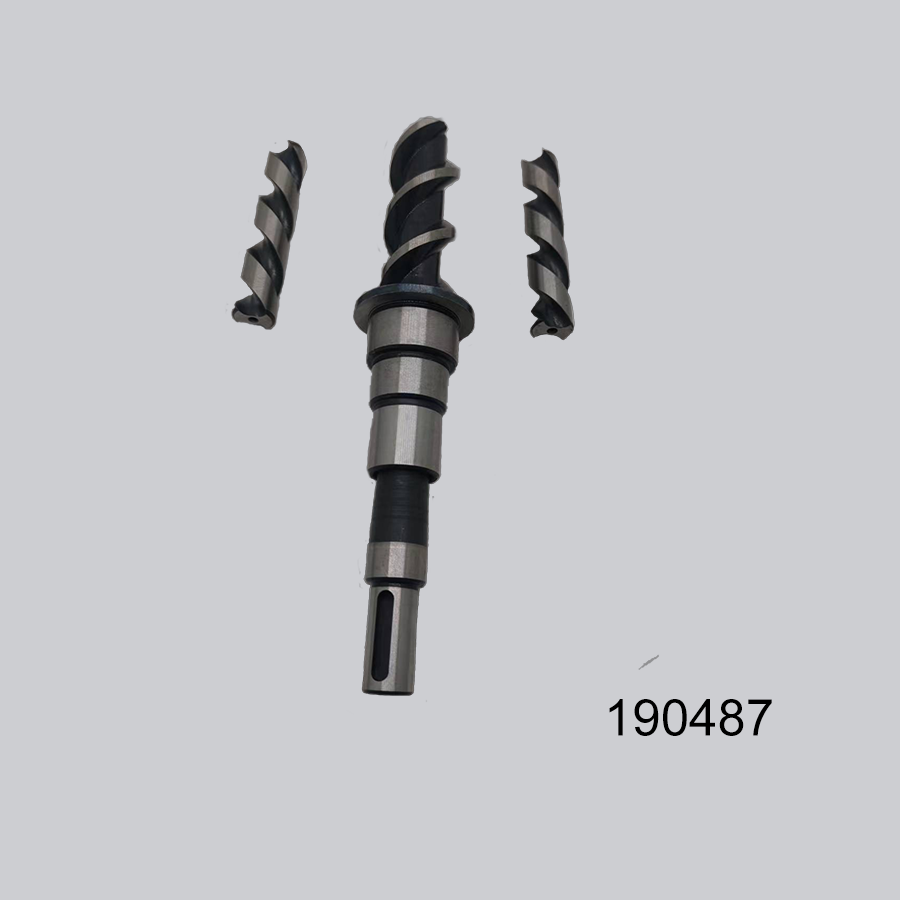

In Marine and Shipbuilding Applications, space is extremely limited, and downtime at sea can be catastrophic. Cargo pumps, fuel injection pumps, and lubricating oil pumps rely heavily on compact cartridge seals. Screw pumps, such as those designed by Allweiler and IMO, utilize specialized cartridge-style rotor sets and mechanical seals. Our replacement parts for the IMO ACG and Allweiler SPF series are engineered to withstand the axial and radial forces typical of high-speed marine screw pumps, ensuring leak-free transport of viscous heavy fuel oils (HFO) and diesel.
Another critical application is in Chemical Processing Pumps, where corrosive liquids must be pumped under high vacuum or pressure. In these scenarios, a double balanced cartridge seal is employed. A barrier fluid is circulated between the inboard and outboard seals at a pressure higher than the pump stuffing box. This barrier fluid acts as a lubricant and cooling agent, preventing the corrosive process fluid from contacting the atmospheric seal face, eliminating emissions and safeguarding personnel.
Leverage our manufacturing expertise, advanced technology, and customer-first approach.
Over two decades of dedication to industrial sealing technology and manufacturing excellence.
Typically offering 10% lower pricing compared to other premium tier suppliers without compromising quality.
Utilizing advanced CNC grinding, optical lapping machines, and stringent quality control systems.
Substantial stock levels maintained for standard mechanical seals, enabling fast global delivery.
Our cartridge seals and replacement parts operate reliably across diverse demanding sectors.
We maintain a comprehensive catalog of direct replacement parts for major industrial pump platforms.
Find answers to common questions about our products, customization capabilities, and shipping processes.
Select from our high-precision replacement seals engineered to reduce operational downtime.
As industrial processes push toward higher efficiency and zero emissions, the design of the oil pump seal for industrial cartridge sealing is undergoing major advancements. Traditional single seals are being replaced by double cartridge seals with pressurized barrier systems (API Plan 53 or Plan 54). These systems ensure that if the primary seal face fails, a secondary barrier prevents process fluid from escaping into the environment, complying with strict global environmental standards.
Furthermore, the development of diamond-coated seal faces (such as Diamond-Like Carbon, or DLC) has revolutionized dry-running capabilities. In applications where pumps may experience temporary dry running or cavitation, DLC coatings significantly reduce friction and heat generation, preventing thermal cracking of the seal faces and extending the MTBF (Mean Time Between Failures) of the pump system.
Ningbo Victor Seals Co., Ltd remains at the forefront of these technological shifts. By investing in precision manufacturing equipment and maintaining strict quality control standard procedures, we ensure that every cartridge seal leaving our facility meets the rigorous demands of modern, automated industrial plants. Our engineering team continues to innovate, developing custom sealing solutions that keep your critical pump infrastructure running smoothly.
