High-precision replacement mechanical seals and plug-in cartridge solutions designed for extreme operational environments.
In modern industrial fluid handling, reliable shaft sealing is the critical bridge between operational efficiency and catastrophic equipment downtime. Submersible pumps operating in municipal wastewater plants, mining dewatering pits, chemical processing facilities, and pulp mills face relentless abrasive slurry, hydraulic shock, thermal fluctuations, and corrosive liquid media. The Flygt Seal For Industrial Cartridge Sealing represents the apex of plug-in cartridge seal engineering—delivering self-contained, pre-assembled double mechanical seal performance that eliminates human error during installation while maintaining dynamic sealing integrity under high operating pressures.
Traditional component mechanical seals require tedious manual measurement, precise positioning of spring tension, and meticulous handling of delicate seal face materials during field assembly. Any slight misalignment, contamination by grit, or incorrect axial placement during maintenance often results in immediate fluid leakage and premature seal degradation. Plug-in cartridge sealing technology for Flygt pumps solves these systemic vulnerabilities by encapsulating the primary and secondary seal faces, stationary components, springs, and elastomer secondary seals inside a single robust housing unit. Maintenance technicians simply slide the cartridge onto the pump shaft and secure the housing, drastically slashing mean time to repair (MTTR) while preserving factory-calibrated spring compression.
Pre-set axial positioning eliminates installation measurement errors, protecting brittle face materials from improper spring compression forces during installation.
Integrates an outer medium-side seal face and an inner motor-side seal face separated by a protective oil chamber, ensuring total fluid isolation.
Constructed with premium Sintered Silicon Carbide (SiC) and Tungsten Carbide (TC) faces capable of withstanding extreme abrasive particles and dry-running spikes.
The operational longevity of a Flygt cartridge seal hinges entirely upon material engineering. Standard industrial pump seals often fail due to localized micro-cracking caused by frictional thermal shock or particle abrasion between seal faces. Advanced Flygt-compatible replacement cartridge seals engineered by Ningbo Victor Seals Co., Ltd. utilize state-of-the-art material matrixing tailored for heavy industrial applications:
| Seal Component | Material Specification | Operational Advantage & Performance Criteria |
|---|---|---|
| Outer Seal Faces (Pump Side) | Silicon Carbide vs Silicon Carbide (SiC/SiC) or Tungsten Carbide (TC/TC) | Extreme hardness (Mohs scale 9+), resistance to severe grit erosion, slurry scratch resistance, and superior thermal conductivity to dissipate sliding friction heat. |
| Inner Seal Faces (Motor Side) | Carbon Graphite vs Silicon Carbide (CA/SiC) or Corrosion-Resistant TC | Low friction coefficient, self-lubricating dry-run tolerance during transient phase loss, preventing oil chamber contamination into motor housing. |
| Elastomeric O-Rings | FKM (Viton), NBR (Nitrile), or EPDM | High chemical compatibility with aggressive solvents, acidic effluent, hydrocarbon fluids, and heat resistance up to 200°C. |
| Metal Hardware & Housing | SS316, SS316L, or Duplex Stainless Steel | High tensile strength structural integrity, maximum protection against localized pitting corrosion and stress corrosion cracking in saline environments. |
Exploration of how Flygt cartridge seals serve critical infrastructure across global process industries.
Heavy raw sewage containing suspended organic solids, inorganic grit, fibrous rags, and corrosive hydrogen sulfide gas presents a hostile pumping environment. Flygt submersible pumps (such as Flygt 3102, 3127, 3153, 3202, and 3301 series) installed in municipal wet wells demand cartridge seals that prevent pumped media from infiltrating the barrier oil reservoir. The dual-seal plug-in cartridge design ensures that even if the outer pump-side face encounters severe debris, the inner motor-side seal remains completely uncompromised, shielding high-value motor windings from catastrophic electrical burnouts.
In underground mining operations and open-pit dewatering sites, water contains dense abrasive quartz, granite tailings, and mineral slurries. Standard mechanical seals suffer rapid face washing, face scoring, and clogged springs within weeks. Industrial Flygt replacement cartridge seals incorporate enclosed spring mechanisms isolated from the slurry pathway, preventing particulate build-up and clogging. Silicon carbide-to-silicon carbide faces withstand continuous particle impingement while maintaining micro-lapped flatness within 2-3 light bands.
Chemical processing plants discharge harsh acidic or alkaline industrial wastewater containing aggressive solvents, oils, and chemical sludge. Cartridge sealing systems engineered for these applications feature specialized FKM or Kalrez-equivalent O-rings alongside 316L stainless steel metal components. Compliance with international standards such as DIN24960, EN12756, ISO3069, and API682 ensures these seals deliver zero-emissions containment under volatile operational pressures.
Marine ballast pumps, bilge water separators, and submersible thrusters operate under continuous sea-water exposure, high salinity, and intense pressure differentials. The structural robust shell of Flygt industrial cartridge seals resists galvanic corrosion while accommodating axial shaft movements and vibrations caused by turbulent marine fluid dynamic loads.
The global market for industrial mechanical seals is undergoing a rapid evolution, driven by stringent environmental regulation, total cost of ownership (TCO) optimization, and the rise of Industry 4.0 smart manufacturing. Key trends reshaping the industrial cartridge seal landscape include:
Modern industrial pump management systems increasingly incorporate embedded condition monitoring sensors directly within the pump oil chamber and mechanical seal cartridge. Early detection of barrier fluid temperature elevation, moisture ingress, or acoustic vibration spikes allows plant operators to schedule preventative seal replacements long before mechanical failure occurs. Advanced Flygt cartridge replacement seals designed by Ningbo Victor Seals are engineered with optimal barrier oil circulation channels that integrate seamlessly with automated leak-detection probes in Flygt pumps.
Frictional power losses across mechanical seal sliding faces contribute significantly to cumulative motor energy consumption over millions of operating hours. Through laser micro-dimpling and optimized face geometry, contemporary cartridge seals reduce hydrodynamic drag coefficients by up to 25%. This innovation lowers operating temperatures, extends barrier fluid lifespan, and contributes directly to reducing carbon footprints across municipal and industrial pump stations globally.
Victor Seals products are deployed across diverse sectors worldwide, meeting rigorous international quality standards.
A world-class mechanical seal manufacturer with more than 20 years of technical heritage.
Founded in 1998, Ningbo Victor Seals Co., Ltd. is located in Ningbo, Zhejiang Province, China. Our modern manufacturing facility covers an area of 3,800 square meters with a total construction area of 3,000 square meters, powered by a dedicated team of over 40 expert technicians and engineers. We have established ourselves as one of the most professional mechanical seal manufacturers in China, delivering precision engineered solutions worldwide.

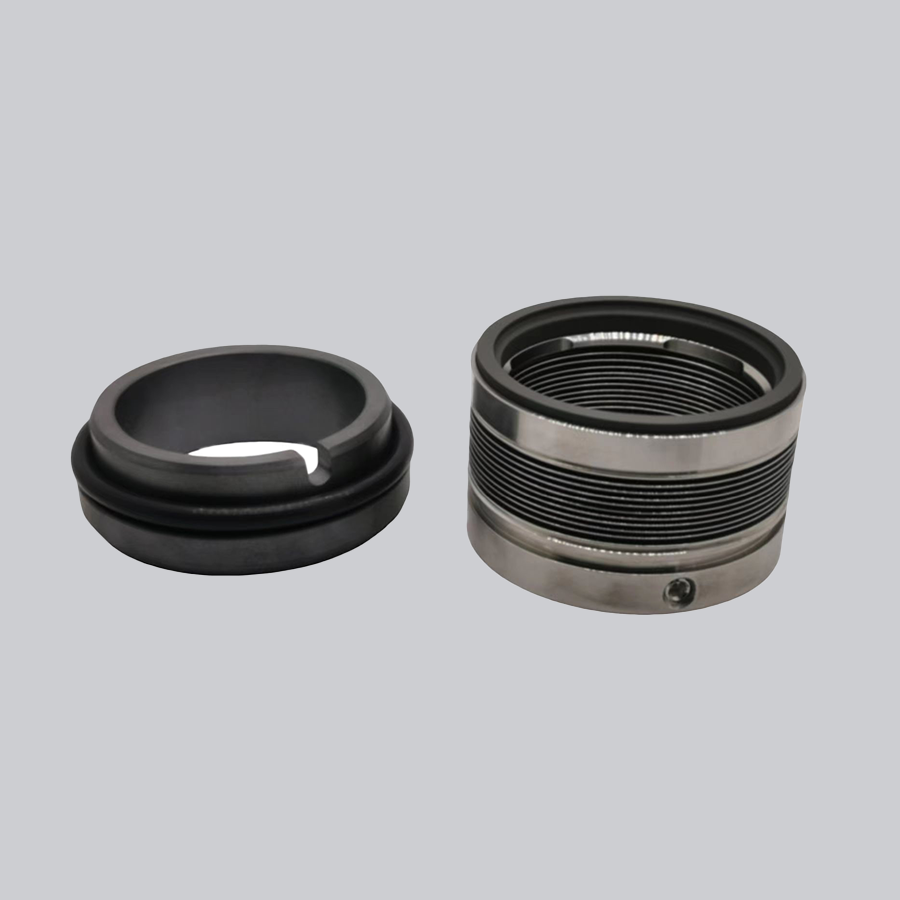

Our flagship brand "Victor" is registered in more than 30 countries across the globe. Our comprehensive product portfolio includes complete mechanical seal assemblies such as cartridge seals, rubber bellow seals, metal bellow seals, and o-ring seals designed to handle demanding industrial working conditions. Furthermore, we specialize in OEM mechanical seal R&D tailored to custom equipment parameters. We also manufacture high-precision spare parts using premium materials including Silicon Carbide, Tungsten Carbide, Ceramic, and Carbon for seal rings, shaft bushings, and thrust discs. All products strictly adhere to DIN24960, EN12756, ISO3069, API610, API682, and GB6556-94 manufacturing standards.
Over two decades of specialized engineering experience in mechanical seal design, failure analysis, and material selection.
Direct factory manufacturing allows us to offer premium quality at approximately 10% lower pricing than competitive market suppliers.
State-of-the-art CNC machining, diamond lapping equipment, and optical flatness testing guarantee flawless sealing faces.
Every mechanical seal undergoes 100% hydrostatic and dimensional inspection prior to dispatch to eliminate operational defects.
Large inventory of standard replacement mechanical seals ensures rapid order processing and zero downtime for clients.
Dedicated after-sales support coupled with express air/sea freight ensures quick delivery anywhere in the world.
Explore our top-tier cartridge seals, pump rotor sets, and custom mechanical shaft seal replacements.
Browse our comprehensive OEM replacement seals compatible with Grundfos, Allweiler, IMO, Inoxpa, and Flygt pumping systems.
Everything you need to know about our Flygt cartridge mechanical seals, ordering process, custom manufacturing, and global shipping.
A Flygt plug-in cartridge mechanical seal is pre-assembled at the factory with exact spring tension and alignment. This eliminates human error during installation, prevents damage to delicate faces, and dramatically speeds up routine pump servicing.
For standard stock items, we can ship immediately upon receipt of payment. For custom orders or mass production runs, standard lead time is 15–20 days.
We are a direct manufacturer based in Ningbo, Zhejiang Province, operating a 3,800 square meter factory dedicated to high-precision mechanical seal engineering.
Yes! We offer free samples for customer quality inspection prior to bulk production, with freight collect.
We regularly ship via premium international express services including DHL, TNT, FedEx, and UPS. Air freight and sea freight container delivery options are also available based on customer requirements.
Yes. If you do not have drawings or CAD files available, our engineering team can reverse-engineer and create custom sealing solutions tailored specifically to your working conditions and equipment parameters.
