How to Select O-Ring Seal Materials for Corrosive Fluids

Why O-Ring Material Selection Matters for Corrosive Fluids

Industrial fluid handling systems rely heavily on elastomeric seals to maintain pressure boundaries and prevent the escape of hazardous media. When engineers select O-ring seal materials for corrosive fluids, the stakes are significantly higher than in standard water or air applications. Chemical interactions between aggressive media and polymer chains can lead to rapid degradation, system breaches, and catastrophic failures if materials are improperly specified.

Unlike metallic components that may corrode predictably over years, elastomers can fail in a matter of hours when exposed to incompatible chemical environments. Understanding the mechanics of these failures and the operational variables that accelerate them is the foundational step in engineering a reliable, long-lasting sealing solution.

Failure Risks for Uptime and Safety

Chemical attack on elastomeric seals typically manifests as excessive volume swell, embrittlement, or the complete dissolution of the polymer matrix. When an O-ring fails in a highly corrosive environment—such as concentrated sulfuric acid, aggressive solvents, or sodium hydroxide—the consequences extend far beyond immediate fluid loss. A compromised seal exhibiting volume swell exceeding 20% will rapidly extrude from its gland under pressure, causing an immediate and uncontrolled blowout.

The financial and safety risks associated with these failures are substantial. Unplanned downtime in chemical processing and refining facilities routinely incurs costs ranging from $10,000 to over $100,000 per hour in lost production alone. Furthermore, fugitive emissions of hazardous, toxic, or highly flammable fluids pose severe environmental and personnel safety risks, often triggering mandatory reporting and regulatory penalties under environmental protection mandates. Preventing these outcomes requires specifying materials that fundamentally resist the chemical degradation mechanisms at play.

Key Application Variables to Define Early

Successful specification requires defining precise application variables before evaluating polymer families. System pressure dictates the required material durometer (typically ranging from 70 to 90 Shore A) and the potential need for anti-extrusion backup rings. For instance, continuous operating pressures exceeding 1,500 psi (10.3 MPa) necessitate high-modulus materials or tighter gland clearances to prevent the elastomer from being forced into the extrusion gap.

Operating temperature is equally critical in corrosive environments. According to the Arrhenius equation, the rate of chemical reaction—and consequently, chemical attack on the elastomer—accelerates exponentially with heat. A process fluid that is relatively benign to an O-ring at 20°C may aggressively degrade that same elastomer at 80°C. Engineers must thoroughly document the minimum and maximum thermal extremes, continuous operating pressure, fluid state (liquid, gas, or mixed-phase), and any abrasive particulate presence to establish an accurate baseline for preliminary material screening.

Compatibility Factors for Corrosive-Fluid Sealing

The intersection of chemical compatibility and physical operating conditions determines the viability of an elastomer in any corrosive environment. Selecting O-ring seal materials requires a holistic evaluation of how the polymer chain interacts with specific chemical functional groups under application-specific stresses.

Engineers cannot rely on static compatibility charts alone; they must analyze how dynamic forces, thermal fluctuations, and concentration variables alter the physical properties of the seal over its intended lifecycle.

Chemical Resistance, Permeation, and Swelling

Chemical resistance evaluates an elastomer’s ability to retain its original physical properties—such as tensile strength, elongation at break, and modulus—upon exposure to a fluid. Swelling is a primary, measurable indicator of chemical incompatibility. When fluid molecules permeate the polymer network, they force the chains apart, causing the seal to increase in volume. Permeation, the rate at which gases or liquids diffuse entirely through the elastomer at a molecular level, is distinct from chemical attack but equally critical for volatile corrosive gases like hydrogen sulfide (H2S).

For highly volatile or toxic gases, low permeation rates are mandatory. Permeation coefficients vary drastically among polymer families; for example, high-density fluorocarbon (FKM) typically exhibits a permeation rate 10 to 100 times lower than standard silicone for most hydrocarbon and acidic gases, making it vastly superior for emission control.

Fluid Properties, Concentration, and Temperature

Fluid concentration and operating temperature synergistically affect seal longevity and must be evaluated together. A low concentration of a corrosive agent might not immediately attack an elastomer, but as concentration increases, the chemical potential for polymer chain scission rises dramatically. For example, a 10% concentration of nitric acid may be compatible with a standard FKM O-ring at room temperature, but exposing that same seal to a 70% concentration at 60°C will cause rapid oxidative degradation and catastrophic failure.

Furthermore, the maximum temperature limits of the elastomer itself must be derated when exposed to aggressive media. While a specific elastomer formulation might possess a dry-heat rating of 200°C in atmospheric air, its maximum continuous service temperature in a highly corrosive fluid might be limited to 130°C. Exceeding this derated threshold accelerates cross-link degradation, leading to irreversible compression set in which the O-ring loses its elastic memory and flattens out, compromising the sealing force.

Static, Dynamic, CIP, SIP, and Vacuum Conditions

The mechanical state of the seal heavily dictates its tolerance for chemical degradation. Static seals, such as those used in flange gaskets or stationary housing covers, can tolerate higher volume swell (up to the 20% threshold) because the rigid metal gland confines the elastomer and prevents movement. Conversely, dynamic seals used on reciprocating pump shafts or rotary valve stems cannot tolerate more than 5% to 8% swell. Any higher swelling generates excessive friction, leading to rapid abrasive wear, heat generation, and spiral failure of the O-ring.

In the food, beverage, and pharmaceutical sectors, seals face highly aggressive Clean-In-Place (CIP) and Sterilization-In-Place (SIP) protocols. These environments expose O-rings to alternating cycles of acidic/caustic chemical washes (such as 3% sodium hydroxide or peracetic acid) followed immediately by high-temperature steam up to 140°C. Additionally, vacuum applications—which can reach pressures as low as 10^-9 Torr in semiconductor manufacturing—demand materials with exceptionally low outgassing properties to prevent system contamination and seal shrinkage, requiring highly specialized fluoroelastomer compounds.

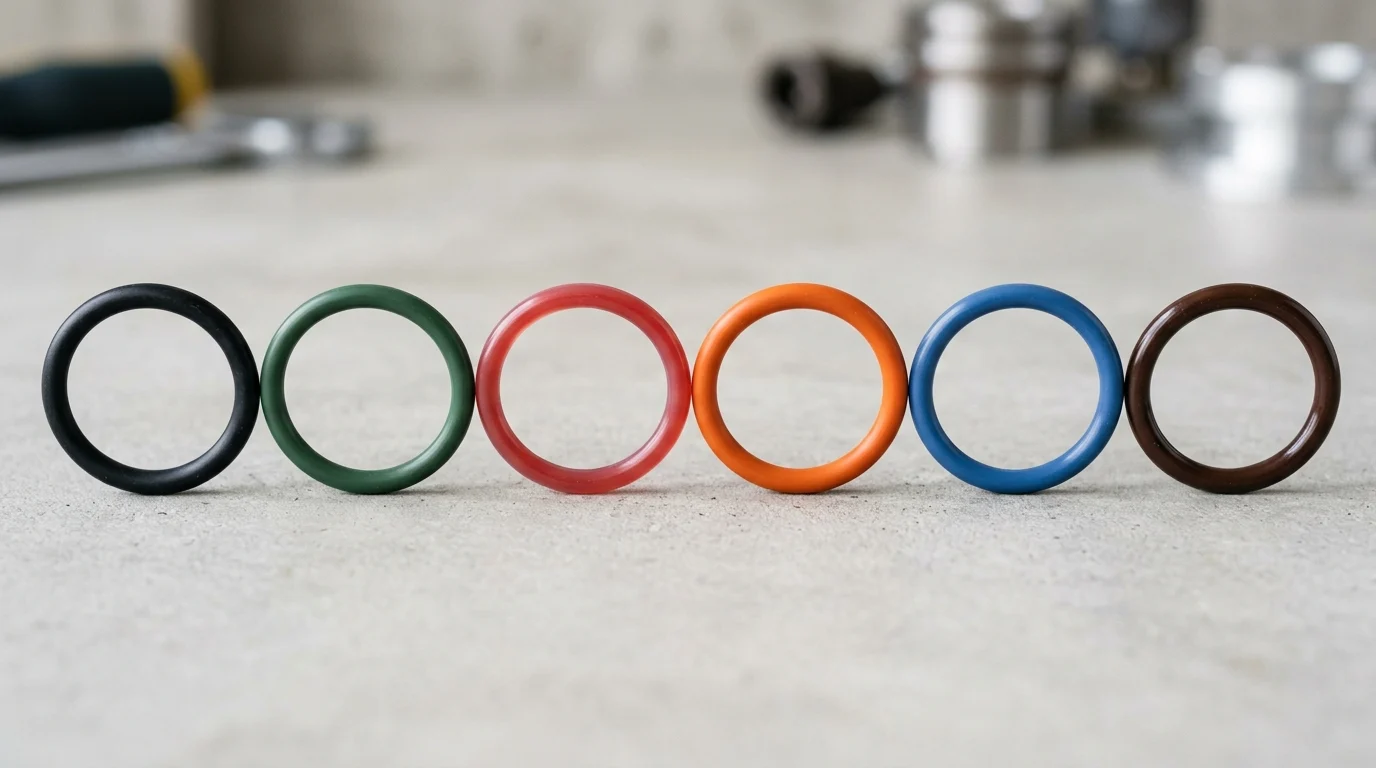

Comparing Common O-Ring Materials

The commercial elastomeric market offers a broad spectrum of polymers, each engineered with specific cross-linking chemistries designed to resist particular fluid classes. To effectively select O-ring seal materials, engineers must align the polymer’s molecular structure with the chemical environment it will face.

Understanding the inherent strengths, weaknesses, and cost implications of standard versus premium materials is essential for specifying a seal that balances upfront capital expenditure with long-term operational reliability.

FKM, FFKM, EPDM, PTFE, HNBR, NBR, and Silicone

Standard elastomers like Nitrile (NBR) and Hydrogenated Nitrile (HNBR) offer robust mechanical properties and excellent abrasion resistance but are strictly limited to aliphatic hydrocarbons, failing rapidly in polar solvents and strong acids. Ethylene Propylene Diene Monomer (EPDM) excels in polar solvents, hot water, and steam (capable of handling temperatures up to 150°C) but degrades almost instantly upon contact with petroleum-based oils and fuels.

Fluorocarbons (FKM) provide broad resistance to oils, fuels, and many aggressive acids, operating effectively up to 200°C, making them the standard for heavy industry. For ultimate chemical inertness, Perfluoroelastomers (FFKM) dominate the market; their fully fluorinated backbone resists over 1,800 distinct chemicals and survives continuous temperatures up to 327°C. Silicone possesses excellent low-temperature flexibility (down to -60°C) but lacks the chemical resistance necessary for corrosive fluids. Polytetrafluoroethylene (PTFE) is universally inert but lacks true elastomeric memory, often requiring spring-energized designs or elastomeric cores to function as an effective O-ring.

Chemical Resistance and Performance Trade-Offs

No single elastomer is universally optimal; enhancing chemical resistance almost always compromises mechanical robustness or low-temperature flexibility. For instance, increasing the fluorine content in FKM compounds improves acid and solvent resistance. High-fluorine FKM grades (e.g., 70% fluorine content) provide vastly superior chemical resistance compared to standard 66% grades. However, this chemical upgrade causes the polymer’s glass transition temperature (Tg) to rise, making the O-ring rigid and brittle at -10°C instead of the standard -25°C.

Similarly, while FFKM provides unmatched chemical inertness comparable to PTFE, it exhibits trade-offs in mechanical performance. FFKM generally has lower tensile strength and a higher susceptibility to compression set than standard FKM. When deploying FFKM in high-pressure corrosive environments, engineers must design glands with extremely tight clearances and utilize backup rings to prevent the softer, highly fluorinated material from extruding under pressure.

When to Upgrade to Premium Materials

The decision to upgrade from standard elastomers to premium compounds like FFKM hinges entirely on risk assessment and the Total Cost of Ownership (TCO). While the initial unit cost of a premium seal can induce sticker shock, it must be contextualized against maintenance labor and facility uptime.

If a standard FKM seal in a corrosive chemical pump requires replacement every 3 months due to chemical embrittlement, the cumulative labor, fluid loss, and downtime costs quickly eclipse the initial component savings. Upgrading to an FFKM O-ring—which may carry a cost multiplier of 50x to 100x over an NBR equivalent—is fundamentally justified when it extends the maintenance interval to 24 months, thereby preventing a $50,000 unscheduled plant shutdown and drastically reducing the lifecycle cost of the equipment.

Qualification, Compliance, and Supply Chain Checks

Beyond theoretical chemical compatibility, deploying elastomeric seals in critical industrial infrastructure requires rigorous, verifiable validation. Selecting O-ring seal materials involves navigating a complex matrix of regulatory compliance, standardized physical testing, and supply chain logistics to ensure long-term reliability and safety.

An elastomer may appear perfectly suited for a corrosive fluid on paper, but without empirical testing and certified supply chain traceability, the risk of premature failure remains unacceptably high.

Relevant Standards and Certifications

Regulatory compliance is non-negotiable in many high-stakes sectors, dictating exactly which polymer compounds can be legally installed. Seals used in pharmaceutical manufacturing, biotechnology, and food processing must comply with FDA 21 CFR 177.2600 and United States Pharmacopeia (USP) Class VI standards. These stringent regulations strictly limit the allowable extractables and leachables that could contaminate the process fluid, requiring specially formulated, high-purity elastomers.

In the energy and petrochemical sectors, standards such as NORSOK M-710 and API 6A dictate the material’s resistance to explosive decompression (Rapid Gas Decompression, RGD) and sour gas (H2S) aging parameters. Furthermore, global industrial dimensions and manufacturing tolerances are governed by ISO 3601 and AS568 standards. Specifying a material formulation that lacks the requisite industry certifications introduces severe legal liabilities and nullifies equipment warranties.

Immersion Testing and Compound Validation

Relying solely on generic chemical compatibility charts is insufficient for critical applications, especially those involving mixed chemical streams, proprietary fluid blends, or trace impurities that can act as catalysts for degradation. Engineers must mandate physical immersion testing per standards like ASTM D471 to validate the compound empirically.

The ASTM D471 protocol involves submerging the candidate elastomer in the specific service fluid (or a standardized equivalent) for a minimum of 70 hours at the maximum anticipated operating temperature. Post-immersion evaluation measures changes in volume, hardness, tensile strength, and elongation. A compound is generally validated for service if its hardness change remains within ±5 Shore A points and its tensile strength reduction is less than 15%. For highly aggressive fluids or critical aerospace applications, extended 1,000-hour aging tests are highly recommended to accurately capture the long-term degradation curve.

Traceability, Shelf Life, Lead Time, and Sourcing Risk

Supply chain dynamics directly impact material selection and facility maintenance planning. Elastomers are organic compounds subject to aging and degradation even while in storage. Standard Society of Aerospace Engineers (SAE) ARP5316 guidelines specify a maximum 15-year shelf life for NBR and standard FKM compounds. In contrast, premium materials like FFKM and Silicone boast unlimited or 20-year shelf lives, provided they are stored correctly—typically below 38°C, isolated from UV light, ozone-generating electrical equipment, and radiation.

Lead times for premium and specialty materials also fluctuate significantly, impacting sourcing risk. While standard AS568-sized EPDM or NBR O-rings are typically available off-the-shelf for next-day delivery, custom-molded FFKM components or specialty RGD-resistant FKM grades can carry manufacturing lead times of 8 to 14 weeks. Engineers must factor these lead times into their inventory planning and, where possible, specify secondary, more readily available alternate material formulations to mitigate supply chain disruptions during emergency maintenance events.

Practical Selection Process for Engineers

Transforming theoretical material data and chemical compatibility charts into a reliable, field-ready sealing solution requires a structured engineering approach. The ultimate goal when engineers select O-ring seal materials is to achieve a predictable, stable lifecycle that aligns perfectly with the equipment’s scheduled maintenance intervals.

By following a systematic workflow, engineering teams can eliminate guesswork, optimize costs, and prevent the catastrophic failures associated with misapplied elastomers in corrosive environments.

Step-by-Step Material Selection Workflow

The material selection workflow begins with defining the absolute application envelope: continuous and peak temperatures, maximum system pressure, exact fluid chemistry (including trace elements), and the mechanical state of the seal (static versus dynamic). With these parameters established, engineers consult chemical compatibility databases to immediately eliminate unsuitable polymer families. If the fluid contains concentrated amines, for instance, standard FKM is immediately disqualified.

The subsequent step involves evaluating the physical properties of the remaining viable candidates. Engineers must verify compression set resistance—typically targeting <20% compression set after 70 hours at the maximum operating temperature—and ensure the material’s durometer is appropriate for the existing gland dimensions and extrusion gaps. Finally, prototype seals must undergo empirical validation, such as ASTM D471 immersion or Accelerated Life Testing (ALT), to confirm performance metrics before authorizing full-scale production implementation.

Balancing Cost, Reliability, and Maintenance Interval

Cost analysis in seal selection must transcend the initial unit price of the O-ring. A holistic Total Cost of Ownership (TCO) model incorporates the Mean Time Between Failures (MTBF) and the broader operational impact. For example, installing a $5 FKM seal with an MTBF of 6 months in a highly corrosive chemical pump yields a significantly higher TCO than utilizing a $250 FFKM seal that achieves an MTBF of 36 months.

When facility managers factor in specialized maintenance labor (often exceeding $150/hour) and the massive cost of production downtime (routinely scaling past $20,000/day for mid-sized chemical lines), the $245 premium for the FFKM seal becomes a negligible fraction of the savings. Engineers must optimize the seal material to ensure its functional lifespan comfortably exceeds the equipment’s planned preventive maintenance cycle, thereby eliminating costly, hazardous unscheduled interventions.

Final Guidance for Selecting O-Ring Seal Materials

Successfully sealing corrosive fluids demands engineering precision, rigorous physical testing, and a strict refusal to compromise on fundamental material limits. By systematically evaluating chemical compatibility, thermal extremes, pressure dynamics, and regulatory requirements, engineers can specify elastomeric compounds that deliver uncompromising safety and operational reliability.

As industrial fluid chemistries become increasingly aggressive and operating parameters are pushed closer to physical limits to maximize throughput, the demands placed on elastomeric seals will only intensify. Investing in premium elastomeric compounds, demanding stringent supply chain traceability, and prioritizing comprehensive validation testing remain the most effective, long-term strategies to safeguard critical industrial infrastructure against the destructive forces of corrosive fluids.

Key Takeaways

• Document fluid chemistry, concentration, temperature limits, pressure, and seal motion before narrowing O-ring material options.
• Treat volume swell above 20% as a serious failure risk because the O-ring may extrude from the gland and cause leakage or blowout.
• For pressures above 1,500 psi, specify higher-durometer materials, tighter gland clearances, or backup rings to reduce extrusion risk.
• Do not rely on chemical compatibility charts alone; validate material choice against actual temperature, pressure cycling, fluid state, and exposure duration.
• Account for heat as a major accelerator of elastomer degradation, since a fluid that is mild at 20°C may become aggressive at 80°C.

Frequently Asked Questions

What is the first step in choosing an O-ring material for corrosive fluids?

Define the fluid chemistry, concentration, temperature range, pressure, exposure time, and whether the seal is static or dynamic. These variables determine whether materials such as FKM, EPDM, FFKM, PTFE, or specialty elastomers are suitable.

Why are compatibility charts not enough for O-ring selection?

Charts are useful for screening, but they often assume room temperature and static exposure. Real systems may involve heat, pressure cycling, swelling, abrasion, and mixed chemicals, all of which can change seal performance.

When should backup rings be used with O-rings?

Backup rings should be considered when pressure is high, gland clearances are large, or the elastomer is at risk of extrusion. Applications above about 1,500 psi often require tighter gland design or anti-extrusion support.

Which O-ring material is best for strong acids?

There is no universal best material. FFKM and PTFE often perform well in aggressive acids, while EPDM may suit some aqueous acids. The exact acid type, concentration, and operating temperature must be verified before selection.

How does temperature affect chemical resistance?

Higher temperature accelerates chemical attack and can turn a compatible material into a failing one. A seal that performs at 20°C may swell, harden, or crack at 80°C in the same fluid.
