Direct OEM-compatible mechanical seals built for agitators, mixers, and fluid propulsion systems
Comprehensive technical analysis of marine mixing equipment challenges and fluid containment technology
In marine engineering, offshore processing, and naval fluid handling, agitator shaft sealing represents one of the most mechanically demanding applications for fluid dynamic sealing devices. Unlike standard centrifugal pumps where rotation is smooth and radial forces are relatively balanced, marine agitators and vessel mixing shafts operate under severe mechanical dynamic stress. These large mixing shafts—often extended vertically or laterally across deep cargo tanks, ballast treatment reactors, fuel oil blending tanks, and offshore drilling mud vessels—are subjected to significant shaft deflection, heavy radial runout, axial float, and aggressive hydrodynamic turbulence.
The primary operational goal of a high-performance marine seal for agitator shaft sealing is to maintain absolute liquid and gas tightness over thousands of operating hours despite continuous mechanical movement and severe environmental exposure. Sealing Failure in marine mixing systems leads not only to expensive fluid leaks and cargo contamination, but also violates international marine environmental mandates established by the International Maritime Organization (IMO) under MARPOL Annex VI regulations.
Agitator shafts feature extended lengths without bottom bearings in many tank designs. As viscous chemical slurries, seawater mixtures, or heavy crude blends are violently agitated, the resulting bending moments create severe angular eccentricity at the seal chamber. Standard pump seals fail rapidly under such dynamic radial play. Specialized marine agitator seals must incorporate heavy-duty guide bushings, balanced spring faces, and high-flexibility secondary elastomers to continuously compensate for shaft wobble.
To select or manufacture the optimum mechanical seal for a marine mixing assembly, engineers must carefully evaluate several critical operating parameters:
Next-generation tribological materials and sustainable zero-emission maritime standards
The commercial shipbuilding and maritime transport sectors are currently undergoing a digital and green transition. Vessel operators are demanding mechanical seal designs that extend the Mean Time Between Failures (MTBF) while lowering Total Cost of Ownership (TCO). In response, modern marine seals for agitator shaft sealing are moving away from traditional gland packing and basic component seals toward pre-assembled cartridge mechanical seals featuring advanced ceramic composites and engineered metallurgy.
Reaction-bonded and sintered silicon carbide faces provide extreme hardness, superior thermal conductivity, and resistance against slurry erosion in ballast and waste mixing tanks.
Offers maximum mechanical fracture toughness under sudden shock loads, heavy shaft vibration, and abrasive solid particle contamination inside marine chemical agitators.
Perfluoroelastomer (FFKM) and Viton (FKM) secondary O-rings engineered to resist extreme temperature spikes and chemical attack from harsh marine cargoes.
Commercial vessel fleets are also rapidly integrating digital condition monitoring for shaft seals. Smart cartridge seals equipped with embedded thermal sensors and barrier fluid pressure transmitters allow marine engineers on FPSOs and chemical tankers to predict seal face wear before catastrophic failure occurs. This proactive maintenance paradigm prevents unplanned dry-docking and eliminates environmental discharge penalties.
Where high-performance marine agitator shaft seals protect mission-critical operations
Specialized chemical tankers transport volatile, viscous, and highly reactive liquids across global oceans. Marine agitators installed in cargo holds maintain homogeneous temperature and prevent liquid stratification. Mechanical seals used here must feature FDA/EG-compliant non-contaminating seal faces (such as high-purity carbon vs. silicon carbide) and dual-pressurized barrier fluid systems (API Plan 53B) to guarantee zero leakage of hazardous chemical vapors into the atmosphere.
On offshore drilling platforms and drillships, heavy mud agitators continuously stir drilling fluid containing dense solids like barite and bentonite. The agitator shaft seals operate in highly abrasive environments where solid drop-out can rapidly destroy seal faces. Heavy-duty metal bellow mechanical seals and tungsten carbide vs. tungsten carbide seal faces are crucial to withstand continuous abrasive grinding and heavy wave-induced vessel motion.
To comply with IMO global sulfur cap regulations, modern ships utilize seawater exhaust scrubbers. The scrubber slurry mixing tanks use side-entry or top-entry agitators to process corrosive gypsum slurries and acidic wash water. Seals engineered for scrubber agitators utilize Super Duplex stainless steel (2507) or Hastelloy C-276 metallic components to prevent pitting corrosion and crevice corrosion.

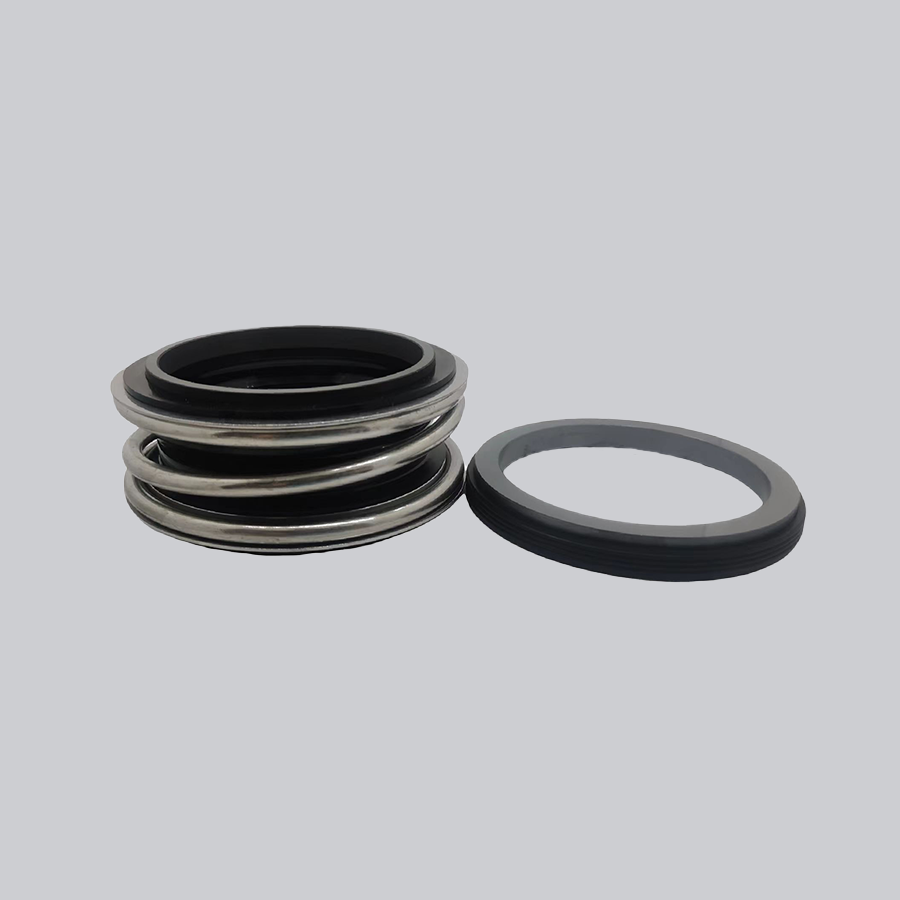

Marine sanitation devices and biological digester tanks require continuous agitation to process blackwater and graywater on cruise ships and commercial vessels. Elastomer rubber bellow mechanical seals (such as Vulcan Type 19B and WeMG1 series equivalents) deliver flexible, self-cleaning sealing capability that effectively handles fibrous materials without clogging or hung-up springs.
Over 20 years of precision manufacturing, engineering excellence, and worldwide supply
Founded in 1998, Ningbo Victor Seals Co., Ltd brings more than 20 years of specialized manufacturing experience to the global fluid sealing industry. Located in Ningbo, Zhejiang Province, our state-of-the-art production facility covers a factory area of 3,800 square meters with a construction footprint of 3,000 square meters. Powered by a dedicated workforce of over 40 highly skilled engineers and technicians, we stand as one of China's premier mechanical seal manufacturers.
Our proprietary brand "victor" has achieved international registration across more than 30 countries worldwide. We specialize in designing and manufacturing a complete spectrum of mechanical seals, including high-tech cartridge seals, rubber bellow seals, metal bellow seals, and o-ring push-type shaft seals suitable for demanding marine agitator environments.
Beyond standard lines, we offer comprehensive OEM customized mechanical seal engineering tailored to specific marine equipment designs and severe working conditions. We produce high-precision seal rings, bushings, and thrust discs in-house using premium materials including Silicon Carbide (SSiC/RBSiC), Tungsten Carbide, Technical Ceramics, and Reaction-Bonded Carbon. All our mechanical seal products comply rigorously with international engineering benchmarks including DIN24960, EN12756, ISO3069, API610, API682, and GB6556-94 standards.
Seamless replacement seals compatible with leading global brands such as EagleBurgmann, Flygt, Grundfos, Allweiler, IMO, Roten, Vulcan, and LOWARA.
Comprehensive failure analysis, re-lapping, and component reconditioning for all mechanical seal categories across maritime fleets.
Tailor-made mechanical seal engineering based on 3D modeling and application parameters, providing optimal solutions for challenging mixer equipment.
Direct manufacturer pricing offering up to 10% lower cost compared to other international suppliers while maintaining identical or superior quality.
Rigorous pressure testing, dimensional inspection, and material composition analysis prior to every shipment for zero-defect delivery.
Extensive inventory of standard shaft seal components for immediate dispatch via global express (DHL, Fedex, TNT, UPS), air freight, or ocean freight.
