What is a rotor on a pump?

You play a key role in boosting pump performance when you select the right pump rotor set. By choosing wisely, you can achieve up to 3.87% higher efficiency and enjoy longer maintenance intervals. Recent studies show that optimized rotors can even increase pump flow by 25%, inspiring real progress.

Key Takeaways

• Choosing the right pump rotor type and design boosts efficiency, flow, and pump lifespan across different applications.
• Selecting proper materials and advanced coatings improves rotor durability, reduces maintenance, and saves costs.
• Regular inspection and smart rotor selection help avoid breakdowns, cut energy use, and maximize pump performance.

How Pump Rotors Work in Different Pump Types

Centrifugal Pump Rotors

You can unlock the true power of fluid movement with centrifugal pump rotors. These rotors, often called impellers, spin rapidly to create a strong force that pushes liquid outward from the center. This action transforms mechanical energy from the motor into kinetic energy, moving water or other fluids through the pump and into your system.

When you choose a centrifugal pump, you join the majority of industries worldwide. In fact, centrifugal pumps held a massive 65% share of the industrial pump market in 2021. You see them everywhere—from water treatment plants to chemical factories—because they handle a wide range of fluids and flow rates.

Tip: Selecting the right impeller design can boost your pump’s efficiency and reliability.

Performance varies based on the fluid and the pump’s geometry. For example, experiments show that some centrifugal pumps achieve a 3.3% higher head with certain solutions compared to water. However, reducing the speed of the rotor leads to a noticeable drop in performance. Numerical simulations confirm these findings, showing that axial-flow pumps can reach efficiencies as high as 86.3%, while other designs may fall below 80%. These differences matter when you want to maximize output and minimize energy use.

Here’s a quick look at typical centrifugal pump rotor specifications:

You can see that proper balancing and design selection help you achieve smoother operation and longer service life. When you invest in the right centrifugal pump rotor, you set yourself up for success in any application.

Positive Displacement Pump Rotors

You can count on positive displacement pump rotors when you need steady, reliable flow—even with thick or sticky fluids. These rotors trap a fixed amount of fluid and move it through the pump with each rotation. This design gives you precise control over flow, making these pumps ideal for industries like food, pharmaceuticals, and oil & gas.

You have several rotor designs to choose from, each with unique strengths:

Laboratory tests show that circumferential piston pumps shine with low-viscosity fluids, while lobe and twin-screw designs excel with thicker materials. You can see these pumps in action across many industries, from moving chocolate in a candy factory to handling crude oil in a refinery.

Experimental studies on wind-driven piston pumps reveal that adding pressure accumulators can reduce pressure spikes by up to 68%. This means smoother operation and less wear on your equipment. When you choose the right positive displacement rotor, you gain control, efficiency, and peace of mind.

Progressive Cavity Pump Rotors

You can achieve remarkable results with progressive cavity pump rotors, especially when you face challenging fluids or need gentle, consistent flow. These rotors have a unique helical shape that moves fluid through a series of small, sealed cavities. This design handles everything from wastewater to thick slurries with ease.

Note: Progressive cavity pumps are your go-to solution for applications where other pumps struggle.

Recent innovations have made these rotors even more impressive. For example, the Vogelsang HiCone design lets you adjust the rotor position, restoring original compression and extending the lifespan of both rotor and stator by up to four times. You can make these adjustments manually or automatically, keeping your pump running like new and reducing downtime.

Here’s how advanced progressive cavity pump rotors improve performance:

You benefit from lower power consumption, longer service intervals, and reduced maintenance costs. By choosing a progressive cavity pump rotor, you empower your system to handle tough jobs with confidence and efficiency.

Pump Rotor Set: Materials, Design, and Selection

Common Rotor Materials

You can unlock new levels of performance by choosing the right materials for your pump rotor set. Each material brings unique strengths, and your selection shapes the pump’s durability, efficiency, and cost. For clean water, you often see rotors made from cast iron, aluminum, bronze, stainless steel, or polymer. If you handle turbid water, polymers may not be the best choice. When you move water with solids, aluminum is less suitable. For hot water, iron, bronze, and stainless steel shine. In seawater, bronze or stainless steel stand out, while cast iron falls short. Pool and whirlpool pumps need polymer impellers to resist chlorine’s harsh effects.

Advanced materials like hybrid composites are changing the game. You can now combine metals and polymers to boost durability and reduce friction. Protective coatings such as tungsten carbide, applied by thermal spraying or chemical vapor deposition, make your pump rotor set tougher against abrasion and corrosion. These innovations help you run pumps longer, even in harsh environments.

Tip: The right material choice can extend your pump’s life and cut maintenance costs.

Statistical studies show E-glass fiber is the most economical and widely used in rotor composites. Carbon fibers give you higher strength and stiffness, especially when fatigue is a concern, but they cost more and may corrode. Aramid fibers offer great toughness and impact resistance, though they are weaker in compression. Hybrid composites let you balance cost, strength, and durability. Fatigue data highlight the need for high manufacturing quality and long-term testing to ensure your pump rotor set stays reliable.

You can see the differences in material performance in the table below:

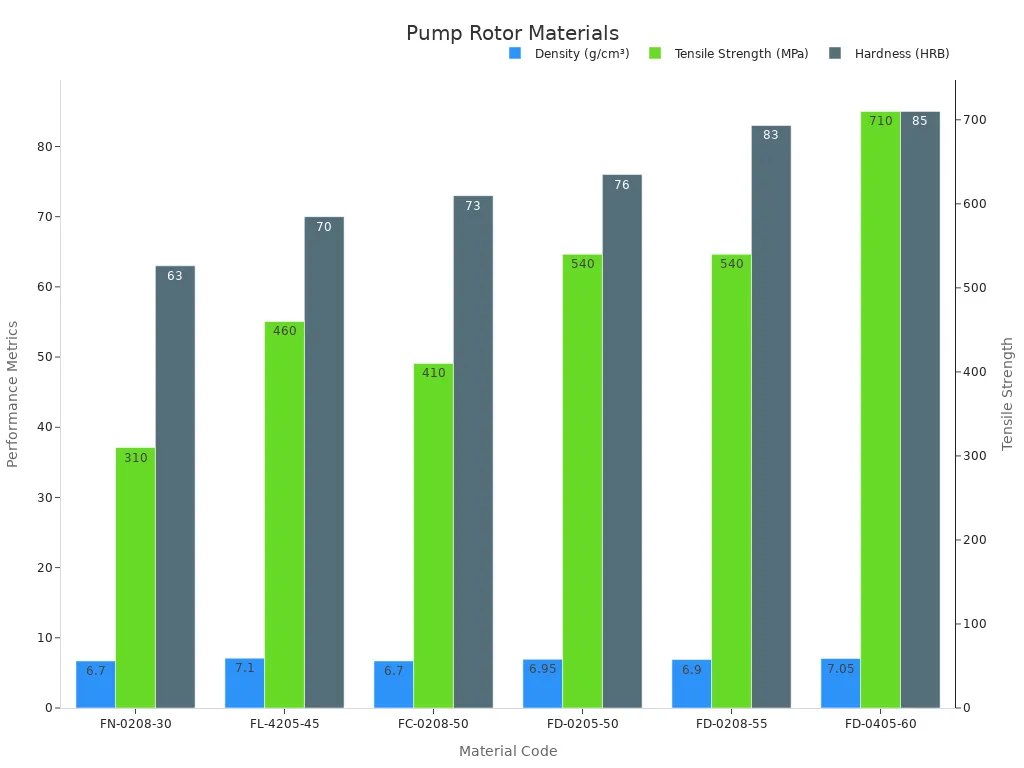

You can also compare these properties visually:

Recent durability tests on graphite rotors show that material choice affects how long your pump rotor set lasts. For example, one graphite rotor type lost only 36.9% of its material after over 1,100 cycles and kept working, while others failed sooner. This proves that your material decision directly impacts pump reliability.

Rotor Design Features

You can achieve remarkable efficiency and reliability by focusing on the design features of your pump rotor set. Modern engineering brings you advanced surface treatments like thermal spray coating and chemical vapor deposition. These methods reduce friction and wear, making your rotors last longer and work more smoothly.

You benefit from precision-engineered lubricants with special additives. These keep moving parts separated, lower friction, and extend the life of your pump rotor set. Computational tools such as Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) help you optimize rotor geometry and flow paths. This means less energy wasted and more fluid moved with every rotation.

• Tight manufacturing tolerances reduce backflow and leakage, boosting efficiency.
• Laser alignment systems ensure your shaft spins perfectly, preventing stress and early failure.
• Rotor and chamber designs create smooth, steady flow, which is ideal for sensitive or thick fluids.
• Real-time sensors and machine learning predict maintenance needs, cutting downtime and saving money.

Note: Low-pressure operation in rotor pumps can save you up to 30% in energy and extend equipment life by 20-25%.

Innovative rotor geometry also delivers measurable improvements. For example, optimizing blade pitch and solidity improves flowmeter accuracy. Adjusting hub-to-tip ratios and blade angles reduces errors and keeps performance steady. Using genetic algorithms to refine propeller shapes has cut non-linearity error by half and lowered the minimum measurable flow speed. These design advances help you get the most from your pump rotor set.

Simulation and prototype testing confirm these benefits. For instance, a twin-rotor design achieved a power coefficient above 0.44 and improved energy conversion efficiency by 9% over conventional designs. These results show that smart design choices lead to real-world gains.

Selecting the Right Pump Rotor Set

You hold the power to transform your system’s performance by selecting the right pump rotor set. Start by considering efficiency and energy consumption. High-efficiency sets can reduce your operating costs and environmental impact. For example, permanent magnet motor pump rotor sets reach up to 94% efficiency—10-12 percentage points higher than standard motors. This can save you up to 21% in energy use and cut annual CO2 emissions by over 32 tons in some applications.

When you choose a pump rotor set, look for these key criteria:

• Efficiency and energy savings
• Flow control adaptability for changing demands
• Durability and wear resistance for longer life
• Low noise for a safer, more comfortable workspace
• Compact design and easy installation

You should also operate your pump above 60% of its Best Efficiency Point (BEP) to avoid vibration and instability. Keep rotor deflection low to protect seals and prevent damage. Strong pump and baseplate structures reduce misalignment and stress. Watch for dynamic effects like resonance, especially with variable speed pumps. Regularly check for wear, as increased clearances can lower efficiency. Good installation practices—solid foundations, proper alignment, and minimal piping forces—help your pump rotor set perform at its best.

Inspiration: Every smart choice you make in selecting and maintaining your pump rotor set brings you closer to peak performance and lasting success.

Case studies prove the value of your investment. In mining, switching to high-efficiency pump rotor sets saved nearly 42,000 kWh of energy each year and paid for itself in less than two years. In municipal systems, these upgrades equaled the energy savings of replacing over 300 incandescent bulbs with LEDs. You can achieve similar results by focusing on the right pump rotor set for your needs.

You drive pump success by choosing the right rotor and keeping it in top shape.

• Regular inspections with smart data help you spot problems early and avoid costly breakdowns.
• Careful rotor selection boosts efficiency and saves money over time.

1. Small gains in efficiency can lead to huge savings and less downtime.

FAQ

What happens if you ignore rotor maintenance?

You risk pump failure and costly repairs. Regular checks keep your system strong and reliable. Stay proactive and watch your pump thrive.

How do you know when to replace a pump rotor?

You notice strange noises, lower flow, or leaks. Trust your instincts. Quick action helps you avoid bigger problems and keeps your pump running smoothly.

Can you upgrade your pump rotor for better performance?

Absolutely! You can choose advanced materials or new designs. Upgrading boosts efficiency and extends your pump’s life. Every improvement brings you closer to success.
